Parametric Diagram in Cradle

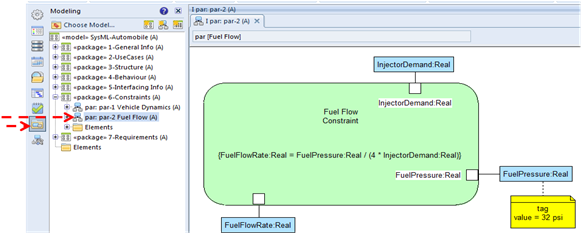

A Parametric Diagram show performance constraint equations, defined in constraint blocks, with a graphical mapping of each constraint equation parameter to a specific value property. Parametric models thus focus on identifying the properties of the system that are critical to satisfying the identified performance requirements. An example is shown in the following Parametric diagram.
